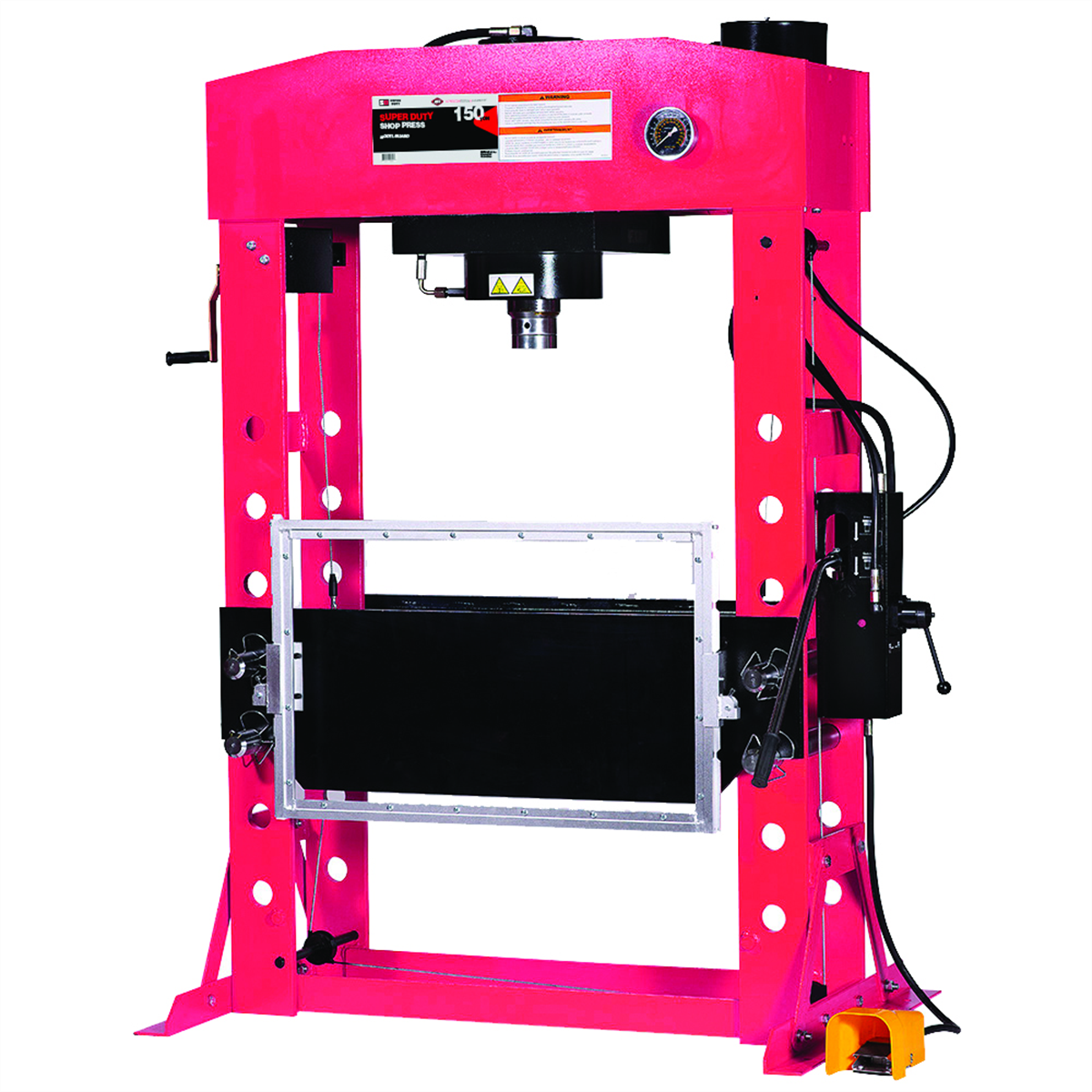

AFF - Shop Press - 150 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY
AFF - Shop Press - 150 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY

Our Price: $15,449.59

Stock Status: Out of Stock

Free Shipping
Product Code: INT862ASD
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
862ASD American Forge & Foundry AFF - Shop Press - 150 Ton Capacity - Foot Operated Air Motor/Manual Pump W/ Hydraulic Ram - Built In Polycarbonate Press Guard - 10 pc Pin & Bearing Press Adapter Set Included - SUPER DUTY

Features and Benefits:

    • Color: Red/Black
    • Capacity: 150 Ton
    • Product Type: Shop Press
    • Power Type: Hydraulic
    • Power Unit Type: Pump & Ram
    • Operation Type: Manual/ Air/Foot Pedal
    • Frame Size: 85" H x 55" W
    • Bed Width (in.
    ): 39.
37"
  • Bed Rail Opening (in.
    • ): 14.17"
  • Bed Position Adjustments: 7
  • Throat Width (in.
    • ): 25.24"
  • Throat Depth (in.
    • ): 13.15"
  • Ram Stoke: 12.
    • 78"
  • Working Air Pressure (PSI): 90-150 PSI
  • Duty Level: Super Duty
  • Weight: 2,645 lbs
  • Includes: 15 Piece Pin & Bearing Press Adapters|2 Arbor Plate Sets|Pressure Guage|Shatter Resistant Press Guard
  • Special Features: Double Pump Air Motor|Rolling Head Assembly|Heavy Duty Bed Winch|Heavy Duty Return Springs
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris.
  • Welded construction for exceptional strength and durability.
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set.
  • Dual air motor operation for faster pressing process.
  • Glycerin filled gauge accurately shows pressing force.
  • 7 position bed height configurations for ultimate operator flexibility.
  • Lateral head adjuster provides smooth side to side movement of the press head.
  • Overload protection adds operator safety and prevents damage from over pressurizing.
  • Heavy duty cable winch for effortless bed adjustment.

    • Offering both standard and super duty shop presses, AFF has your pressing needs covered.

  • Our Super Duty Shop Presses are constructed with a fully welded frame and heavier gauge steel for exceptional strength and durability.
  • A lateral head adjuster provides smooth side to side movement of the press head which adds versatility that you won�t find with other standard duty shop presses.

    •
