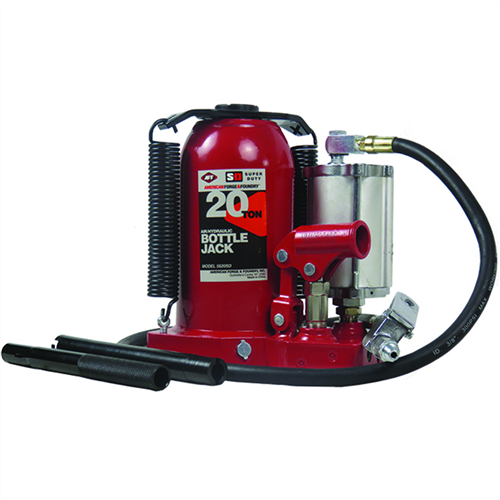

5620SD American Forge & Foundry Aff - Bottle Jack - 20 Ton Capacity - Air/Manual - Super Duty
5620SD American Forge & Foundry Aff - Bottle Jack - 20 Ton Capacity - Air/Manual - Super Duty

Our Price: $437.20

Stock Status:In Stock

Product Code: INT5620SD
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
5620SD American Forge & Foundry Aff - Bottle Jack - 20 Ton Capacity - Air/Manual - Super Duty

Features and Benefits:

    • Color: Red/Black
    • Product Type: Bottle Jack
    • Capacity (T): 20 Ton
    • Power Type: Hydraulic
    • Operation Type: Air/Manual
    • Minimum Height (in.
    ): 10.
3"
  • Maximum Height (in.
    • ): 20.67"
  • Ram Lift (in.
    • ): 6.12"
  • Extension (in.
    • ): 4.25"
  • Saddle Diameter: 1.
    • 8"
  • Base Length (in.
    • ): 8.86"
  • Base Width (in.
    • ): 5.72"
  • Handle Length (in.
    • ): 16.5"
  • Number of Handle Pieces: 2
  • Oil Reservoir Assembly: Fully Welded - Collar & Base
  • Base Type: Machined Steel
  • Release Type: Cross Head Valve
  • Working Air Pressure: 90-150 PSI
  • Duty Level: Super Duty
  • Weight (lb.
    • ): 40 Lbs.
  • Certification: ASME/PASE 2019
  • The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance.
  • They are ideal for use in automotive, truck, farming, mining, and much more.
  • Fully welded at top nut and base on oil reservoir for ultimate leak free usage
  • Precision machined hardened 1 1/8” steel base for reliable strength.
  • Made with centered pumps and rams with heat treated pistons
  • Saddles are made of machine hardened steel for unsurpassed strength.
  • Built-in bypass system prevents accidental overload and provides added operator safety.
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
  • Operating pressure at 90-180 PSI
  • Aluminum air motor design delivers fast, consistent, and reliable operation.
  • Dual cylinder return springs.
  • Comes with carrying handle.

    • American Forge & Foundry�s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions.

  • Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.

    •
