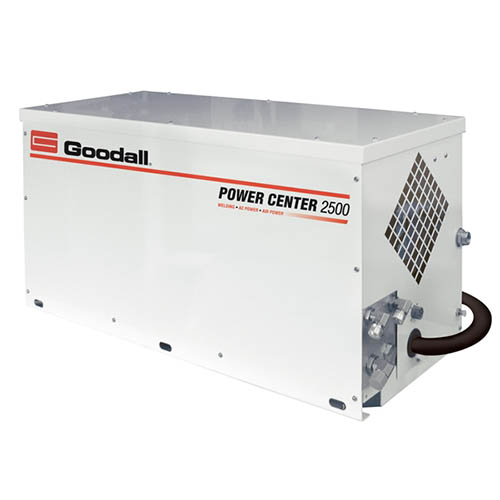

Goodall 02-500 GPC 2500 Hydraulic Powered Welder, 250 amp; Generator 5,000 watt; Air Compressor 24 cfm
Goodall 02-500 GPC 2500 Hydraulic Powered Welder, 250 amp; Generator 5,000 watt; Air Compressor 24 cfm

List Price: $15,050.00
Our Price: $12,341.00


Free Shipping
Product Code: 02-500
Qty:

Description

Request us to BEAT a competitor's price. Click Here

Click here to download the current catalog


GPC 02-500

Dimensions: 20"W x 48"D x 25"H, 545 lbs.

Hydraulic Requirement:

  • 10 GPM @ 2500 psi – 15 GPM @ 3000 psi tandem pump
  • 35 gallon (minimum) hydraulic tank
  • Requires (2) 3/4" pressure lines (minimum), 1" return hose (minimum)

DC Welding: DC Stick 40 – 250 amp – 250 amp 60% duty cycle

Cables: 25 ft. 1/0 ga. welding cables included

AC Output: 120/240 volt, 6,000 watt, 60 Hz

Outlets:

  • one 120 volt, 20 amp duplex outlet
  • one 120 volt, 30 amp twist lock outlet
  • one 240 volt, 20 amp twist lock outlet

Air Power:

  • 2 stage 24 CFM @ 100 psi, 150 psi max
  • Air gauge on control panels monitors air tank pressure

* Air tank required, sold separately*

Control Panel: Standard 12 ft. cable harness
Control Box Dimensions: 18"W x 5"D x 12"H I

Warranty:

  • Hydraulic | 1 Year
  • Compressor | 1 Year
  • AC Generator | 1 Year
  • General | 1 Year
