Dimensions:
- Unit with fuel tank: 20"W x 48"D x 25"H, 625 lbs.
- Unit footprint without fuel tank and control box: 20"W x 48"D

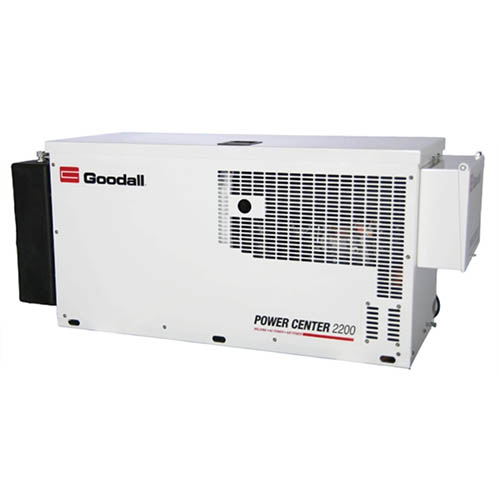

Product Description: Same as Goodall® Power Center 2050 plus Auto Idle. Idles the engine down when not under load.
Engine: Electric start, air cooled Kohler Command OHV V-Twin
DC Welding: DC Stick 40 – 250 amp – 250 amp 60% duty cycle
Cables: 25 ft. 1/0 ga. welding cables included
AC Output: 120/240 volt, 5,000 watt, 60 Hz
- one 120 volt, 20 amp duplex outlet
- one 120 volt, 30 amp twist lock outlet
- one 240 volt, 20 amp twist lock outlet
Air Power:
- 2 stage 24 CFM @ 100 psi, 150 psi max
- Air gauge on control panels monitors air tank pressure
*Air tank required, sold separately*
Control Panel: Plug and play feature of control panel for easy remote mounting. Requires extension harness for mounting distances beyond 12"
Installation:
- Provides for a compact, easy installation in less time with these simple bolt-in packages
- Center point lift included for easy installation
- Includes 8 gallon fuel tank (removable)
- Control panel box is removable for remote mounting
Warranty:
- Engine | 3 years
- Compressor | 1 Year
- AC Generator | 1 Year
- General | 1 Year
