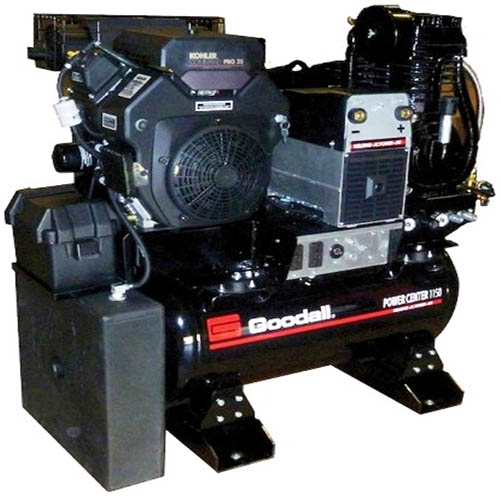

GPC 01-150 Power Center Combination Units This tank mount unit incorporates the power of an AC generator, air compressor and welder, making it a compact unit that is a must-have for an on-the-go service technician. An open-air design makes parts easily accessible for maintenance and repair. GPC 01-150-B Base Mount (not pictured)
Dimensions: 50"L x 23"w x 45"H, 675 lbs.
Engine: Air cooled Kohler command OHV V-twin with 5 gal. fuel tank
DC Welding: DC Stick 40-250 amp – 250 amp 60% duty cycle
Cables: 25 ft., 1/0 ga. welding cables included AC Output: 110/220 volt, 5,000 watt, 60 hz
Air Power: 2 stage 29 CFM @ 100 psi, 175 psi max, 30 gallon air storage tank
Warranty: - Engine | 3 Years
- Compressor | 1 Year
- AC Generator | 1 Year
- General | 1 Year
Optional Remote Control Box 190-007Remote Control Box Assembly 1150, 6′
190-007-12 Remote Control Box Assembly 1150, 12′
Easy access to all control functions: AC power outlets Engine controls and hour meter
Air compressor controls and gauge
Welding controls and ports
